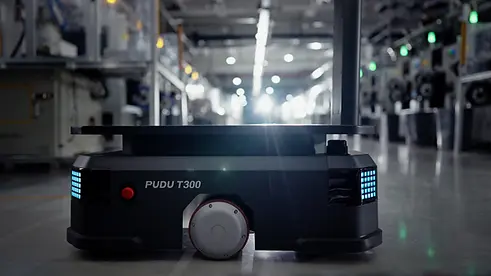

T300 Engagement in Industrial Delivery Processes
300
Maximum Loads (kg)
60
Minimum Clearance (cm)
12
Run-time (none load) (hour)
VSLAM & Lidar SLAM Navigation Methods
1340MM
780MM
500MM
PUDU VSLAM+
This allows the PUDU T300 to quickly adapt to changes in production layouts without the need for time-consuming reconfiguration or facility remodeling.
Auto & Semi-auto Delivery Modes
Power-assist Mode
When manual intervention is required for specific tasks or map generation, the T300 is equipped with an electric power-assist system to facilitate hand-pushing operations, thereby enhancing delivery efficiency and convenience.
.webp)
Follow Mode
The T300 employs visual recognition technology to facilitate an orderly queuing and following mechanism among multiple robots, a system primarily used for material preparation and the transportation of assorted goods.
.webp)
Auto-delivery Mode
The T300 is capable of autonomous navigation and can deliver goods to any designated destination. Additionally, you can swiftly adjust the maps to accommodate changes in the production line.
Comprehensive Safety Protection
Compliant with the ISO 3691-4 standard, the T300 is equipped with multiple safety measures, including LiDAR sensors, depth cameras, collision protection sensors, and emergency stop buttons. It can identify various low-lying or suspended obstacles and recognize yellow safety lines on the floor, meeting the safety management requirements of factories.
Boasting an exceptional 60cm path clearance
The T300 ensures agile maneuverability in narrow human-robot cohabited spaces
Effortlessly overcoming 20mm thresholds and 35mm grooves
It facilitates precise material transport between production lines and is designed to meet elevator control requirements.
Multimodal Interaction
Audible alerts for effective reminders.
Customizable buttons for more organized collaboration.
Traffic signal light design visually presenting driving intentions
High-brightness operation indicator lights, clearly displaying the robot's position
24/7 Non-stop Operations
8 hours of continuous work, 2 hours for rapid charging
The T300 offers an 8-hour battery life and supports a fast 2-hour charging capability. Equipped with both automatic recharging and battery replacement options, it ensures uninterrupted service to fulfill round-the-clock operational requirements.
technical specs
Machine Dimension: 780mm×500mm×1340 mm
Robot Weight: 60kg (standard mode) (132 LBS)
Operating Speed: Max 1.2m/s (Max 3.94 ft/s)
Charging Time: 3.5h
Run Time: 12h (none load) , 6h (fully load)
Max Path Clearance: 60 cm
Threshold Crossing Height: Maximum 20 mm
Load Capacity: 300 kg (660 LBS)
Groove Crossing Width: Maximum 35 mm
Battery Capacity: 30Ah
Navigation Methods: VSLAM & Lidar SLAM
Site Requirements: Indoor environment and flat ground
